Submersible Pressure

eYc LBM04 Float Level Transmitter

Accurately Achieve Level Measurement and Process Control

● No impact on measuring from container inner pressure
● Multiple outputs selectable
● Easy to use, applicable to various medium
● Stainless steel wetted parts
With liquid level fluctuation, a magnetic float triggers the switch inside tube , which changes the number of connected resistors. This changing of resistance is converted to standard electrical signal output. All-metal housing, LED display, Dual keys design and user friendly menu, various process connections, 330º rotatable indicator.

Measuring Range( Rod Length )
250 mm / 500 mm / 750 mm / 1000 mm / 1250 mm / 1500 mm

Applicable Medium
Corrosive liquids compatible with 304 stainless steel

Resolution
8 mm or 16 mm

Pressure Rating
20 bar
Medium Density
≥ 0.7 g/cm3
Power Supply
10 ... 36 VDC

Wiring Protection
Reverse polarity

Protection Class
IP67

Electrical Connection
M12×1 plug ; DIN 43650 plug

Material
304 stainless steel
Current Consumption
2-wire : 4 ... 20 mA
3-wire : ≤ 22 mA
Current Analog Output
Output : 2-wire : 4 ... 20 mA ; 3-wire : 4 ... 20 mA, 0 ... 20 mA
Load : 2-wire : RA ( Ω ) ≤ ( Us - 10 ) V / 0.02 A
: 3-wire : RA ( Ω ) ≤ ( Us - 3 ) V / 0.02 A
Linearity : ≤ ± 1.5 % of F.S.

Voltage Analog Output
Output : 3-wire : 0 ... 5 V, 1 ... 5 V
Load : RA ( Ω ) ≥ 5 K
Linearity : ≤ ± 1.5 % of F.S.

Temperature
Ambient : - 40 ℃ ... +85 ℃
Medium : - 40 ℃ ... +85 ℃
Storage : - 40 ℃ ... +85 ℃

Products
Temperature & Humidity
Dewpoint
Temperature
Temperature sensor
Air Velocity / Water Flow
Gas
Pressure
Submersible Pressure
Differential Pressure
Piezoresistive
External Flush Diaphragm Pressure
Signal / Meter
IoT / Wireless
Industry 4.0 / A.I.

● No impact on measuring from container inner pressure
● Multiple outputs selectable
● Easy to use, applicable to various medium
● Stainless steel wetted parts

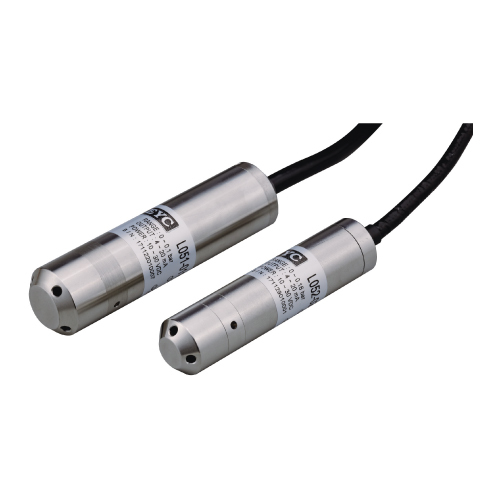

eYc L051/ L052 Submersible Pressure Transmitter

● submersible，stainless steel material
● 22Ø/27Ø，0~10BAR，4~20mA
● cable:PVC/PTFE，cable length:Option

Measuring range
0～10 BAR
Linear accuracy
± 0.5 % of F.S.
Output
4～20mA
Signal connection
2-wire
Load resistance
[Ohm] ≤ (working voltage-10V)/0.02A-0.15Ω x cable length(M)
Output calibration(ZERO & SPAN) adjustment span
L051:±10%of zero-point and full-scale/L052: computer calibration
Power supply
10～30VDC
Protection degree
IP 68

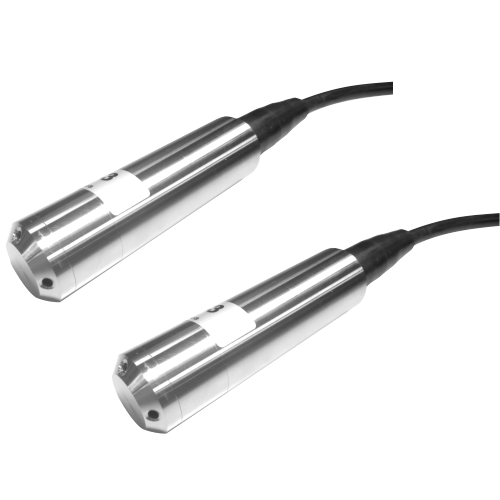

eYc L053 Submersible Pressure Transmitter

EYC L053, submersible pressure transmitter, is easy to apply in open container and rivers. Plunge the transmitter into the bottom of rivers and you can get level signal of lower limit and upper limit.

Measuring Range
0 ... 10 bar
Accuracy
± 0.5 % of F.S.
Output
4 ... 20mA
Sensor Type
Piezoresistive diaphragm
Load Resistance( Current Output )
[ohm]≦ ( ( Working Voltage - 10V ) / 0.02A ) - 0.15Ω x Cable Length ( m )
Output Calibration( ZERO & SPAN )
± 10 % of zero-point and full-scale
Power Supply
10 ... 30VDC
Protection Rating
IP68

●Piezoresistive diaphragm sensor type
●SUS304 housing, SUS316L sensor material, diameter 27Ø, PVC cable
●IP68 protection rating, compact and rugged design and easy to install
●With reasonable price, high accuracy and nicer long-term stability

●Drinking water equipment / Well pits / Wastewater plant / Big container and barrel /
●Flow current ( rivers and lakes )
