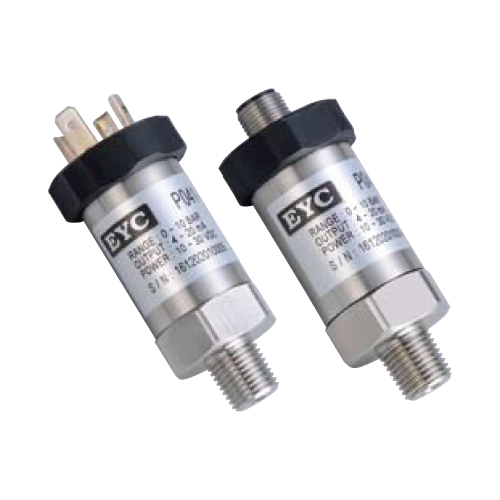

Sensor type
piezoresistive diaphragm
Measuring range
absolute pressure / relative pressure:10bar
Output
4~20mA ; 2-wire
Linear accuracy
± 0.3 % of F.S.
Media measured
air / liquid
Power supply|
10~30VDC
Electrical Connection
DIN 43650；M12
Installation
pipeline
Protection rating
DIN 43650 : IP65；M12:IP67
Housing
SUS 304

• Measuring pressure for liquid and air.
• For research and development, laboratory,and processing engineering
• Building, liquid and air pressure measurement.
• Machine devices, water plant, and air devices, etc.

Measuring Range
Absolute pressure : 0 ... 10 bar
Relative pressure：0 ... 40 bar
Accuracy
± 0.3 % of F.S.
Output
4 ... 20mA
Sensor Type
Piezoresistive diaphragm
Load Resistance ( Current Output )
≦ ( Working voltage - 10 V ) / 0.02A Ω
Output Calibration ( ZERO & SPAN )
± 10 % of zero-point and full-scale
Power Supply
10 ... 30VDC
Protection Rating

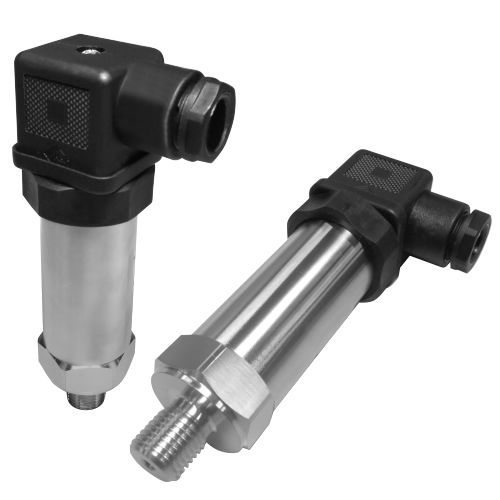

DIN 43650 : IP65
M12 - 4 PIN metal connector : IP67

• Piezoresistive diaphragm sensor type
• SUS304 housing, SUS316L sensor material
• Compact and rugged design and easy to install
• With reasonable price, high accuracy and nicer long-term stability

• Measuring pressure for liquid and gas
• For research and development, laboratory, and processing engineering
• Factory construction / Instrument manufacturing / Machine devices / Water plant / Air devices, etc
