Achieve Precision Flow Measurement & FUM05B Process Control
． No need to cut off water , no pressure loss
． Connect clamp on temperature , transducer , can finish the heat / energy measurement
． Easy for installation

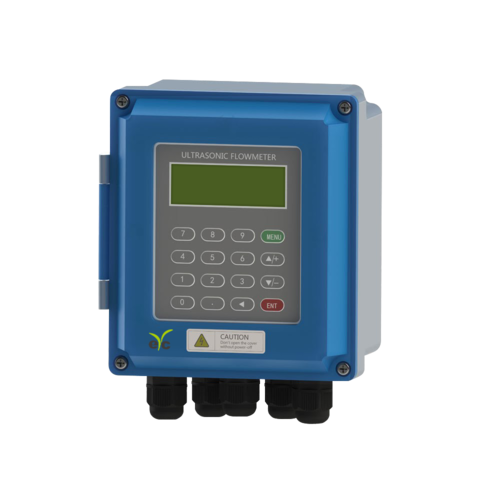

FUM05B flowmeter can be virtually applied to a wide range of long-term online
measurement. Convertor protection class IP67, transducer protection class IP68.
A variety of liquid applications can be accommodated: ultra-pure liquids, portable water,
chemicals, raw sewage, reclaimed watere, cooling water, river water, plant, effluent.etc
Strong, wide measurement range, flexible for water, oil and gas measurement

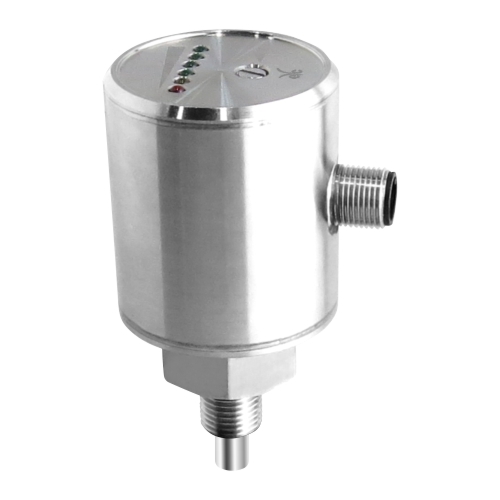

Based on thermodynamic principle, FTC04 features 2 temperature sensors inside the probe: one for medium temperature, the other one is heated a few degrees up compared to the medium into which it projects. When the medium flows, the heat generated in the sensor is conducted away by the medium. The difference between these two sensors can be measured to get flow rate. All-metal housing, Suitable for a variety of pipe diameters.

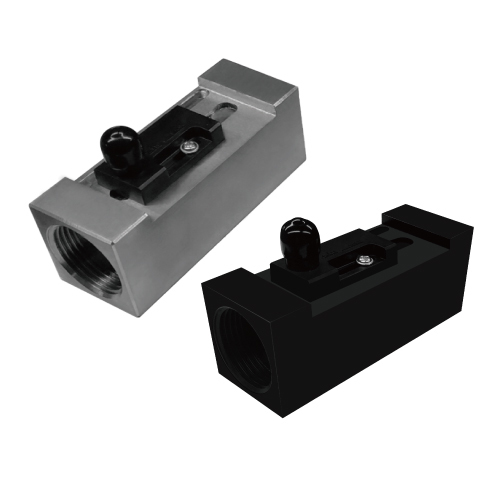

Mechanical flow switch for liquid or gaseous media,with spring-supported piston and magnetic triggering of a reed switch. Rugged design in plastic or brass.
High Accuracy Measurement of Various Viscosity Liquids
● The FGM04 series of positive displacement flow meters have 8 measuring ranges from 0.006 ... 1L/min through 4.0 ... 450L/min
● Optional pickoffs for pulse output, current analog output and voltage analog output

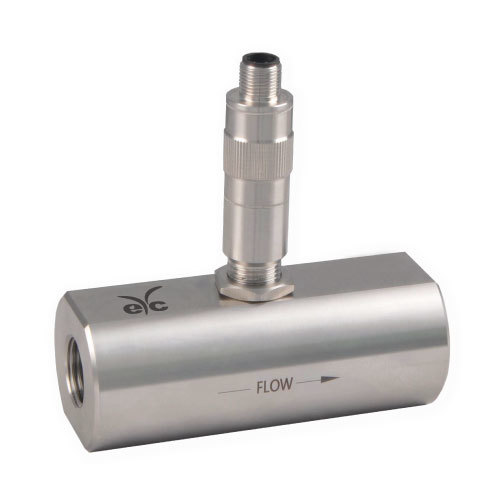

FGM04 positive displacement flow meter measures the flow on the volumetric principle, in
which gearwheels is moved proportional to the flow rate. The movement of the gearwheels is
measured through the enclosing housing wall by a sensor. No straight tap needed. Immune
to medium viscosity. Higher trundown ratio, accuracy, resolution and responsibility, as well as
for measuring the very-low flow. FGM04 flow meters are bi-directional and can be used to
measure the cylinder position without damaging internal parts.
Assembled with journal bearings FGM04 can measure low or non-lubricating fluids, such as
paints, glues, resin, sealant etc.
● Bearable high-pressure, high-temperature and
● low-temperature
● Low pressure loss, low power consumption
● Fast response time
● High repeatability and accuracy
● Resistant to contamination and anti-corrosion
● Compact design and easy maintenance
● Low flow measurement
