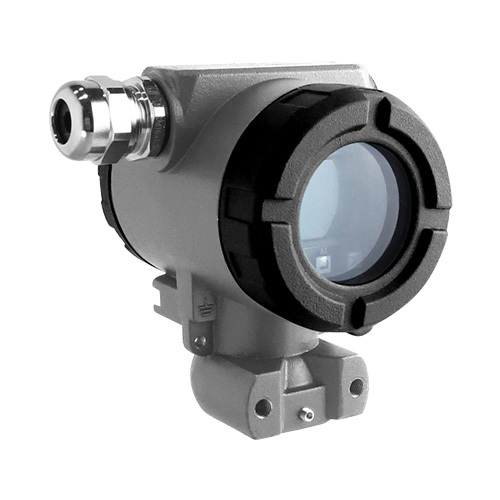

eYc SD06 Integrated Signal Indicator

High-performance Industrial-grade Metal Meter with Anti-interference Design. Suitable for eYc Four Different High Accuracy Sensors.

．Transmitter Up to Four Types : Temperature, Pressure, Differential Pressure, Level.
．2-wire Loop Design
．Anti - Interference
．Protection Rating : IP 65
．Suitable for Industrial Environments
．5-digit Backlight Display
．Button Layout Setting

The SD06 uses the highest measurement component of a high performance diffused silicon transmitter.High reliability, long-term stability, easy installation and use,Compact Size Small and Light, high quality, cost-effective Applications

Input
PT100 / Diffused silicon transmitter / Temp. / Pressure / Differential Pressure / Level
Measuring Range
-9999 ... 99999
Output
4 ... 20 mA
Signal Connection
2 Wire
Temperature Compensation
<0.5% @ -20 ... 70°C
Linear Accuracy
<0.2%
Sampling Time
20 ... 30 times / sec.
Response Time
< 2 sec.
Temperature Influence
±0.05%URL / 10°C
Insulation Resistance
>200 MΩ
Medium
Water, Gas, Oil, etc. Compatible with Stainless Steel
Operating Temp.
-20°C ... 70°C
Storage Temp.
-40°C ... 85°C
Power Supply
24±10% VDC
Current Consumption
< 23mA
Electrical Connection
Terminal Connection
Protection Rating
IP 65
Electrical Protection
■Polarity Reversal Protection ■Over-voltage ■Short-circuit
Certification
CE
Material
Rugged Aluminum
Weight
Metal:618g( Without Wire )
Products
Temperature & Humidity
Dewpoint
Temperature
Temperature sensor
Air Velocity / Water Flow
Gas
Pressure
Signal / Meter
IoT / Wireless
Industry 4.0 / A.I.

．Transmitter Up to Four Types : Temperature, Pressure, Differential Pressure, Level.
．2-wire Loop Design
．Anti - Interference
．Protection Rating : IP 65
．Suitable for Industrial Environments
．5-digit Backlight Display
．Button Layout Setting

Industrial Process Control / Laboratory Systems / Compressor / Petrochemical industry / Chemical Industry

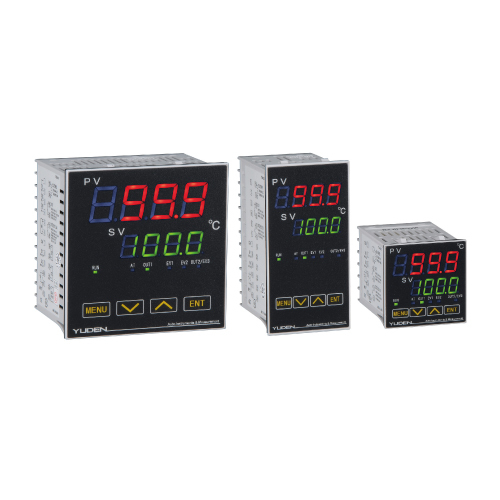

eYc YD900 PID Process Controller

● LED
● Size:4 kinds
● Dispaly:-1999∼9999
● Input:Thermocouple/resistance bulb/Voltage/Current
● Output:Relay/SSR/analog signal/RS485

State Light
green-RUN, AT, OUT1
yellow-EV1, EV2, OUT2/EV3
Input scaling
acceptable input value of voltage and current -1999~9999
Input
Thermocouple: K, J, T, E, R, S, U, N, B, PII, Wre5-26
Resistance bulb : PT100, JPT100
Voltage (mV) : 0~10mV, 0~20mV, -10~10mV, 0~50mV, 0~100mV
Voltage (V) : 0~1V, 0~2V, -1~1V, 1~5V, 0~5V, 0~10V
Current (mA) : 4~20mA, 0~20mA
Thermocouple resistance
>500KΩ, outside resistance<100Ω
Voltage (mv/V) / Current(mA) Input resistance
>500KΩ/250Ω
Output
current output:4~20mA DC
load resistance below500Ω
Voltage output:0~10V DC max. 2mA
Power Supply
90∼264VAC 50/60Hz
Input noise removal ratio
50dB or above

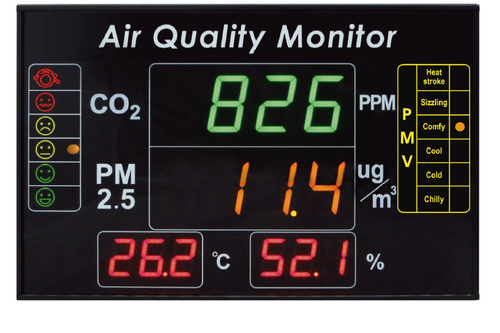

eYc DMB04 4-in-1 Multifunction Indoor Air Quality Large LED Display / Monitor / Indicator

【4-in-1】 Monitor PM2.5, CO2, temperature & humidity via RS-485 at the same time.
【High Brightness LED】Easily recognize measuring types and values.
【6-segment CO2 Emoticon】As the local situation and refer to CO2 indication standards to transfer the suitable emoticon
【6-segment PMV Indication】Refer to PMV indication to display the real-time body sensing.
【Bargain Set】eYc Multifunction PM2.5 Indoor Air Quality Monitor ( type : eYc TGP03 )

Display
Display Type : High Brightness LED
Temperature : 1.5" ( 3.8 cm ) red LED
Humidity : 1.5" ( 3.8 cm ) red LED
PM2.5 : 2.3" ( 5.8 cm ) yellow LED
CO2 : 2.3" ( 5.8 cm ) green LED
Input
RS-485
Output
RS-485
Protocol
Frame : N.81, N.8.2, E.8.1, O.8.1
Installation
Indoor and Wall type
Use with
combination with EYC GTH03 CO2 Temperature & Humidity Transmitter

Monitor environment for Industrial Process / Plant / IDC / Clean room / Laboratory / Agriculture Storage / Hospital / Department store / Office building / Hotel / Restaurant / Library / Banks and so on.

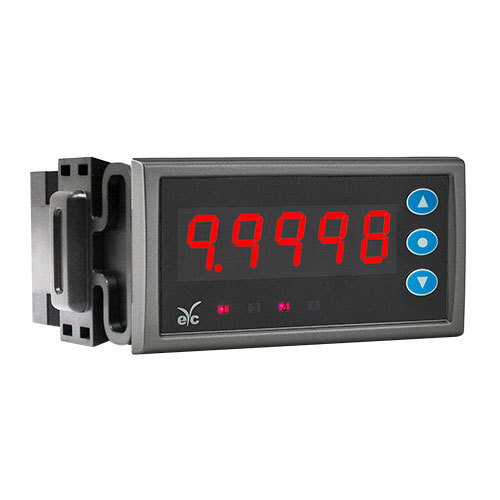

eYc DPM02 Multifunction Signal Display Monitor

● Measuring input type : DC current / DC voltaget / Potentiometer / Linear Resistance / RTD / TC
● More output type ─ analogue output / relay / RS-485
● Extraction of square root ─ input : voltage, current
● Option RS-485 communication function can do 10-point linear calibration function
● Signal isolation, preventing noise, filtering function : provide safe and stable measuring
● Power supply : 85~253 VAC, 50~60Hz；auxiliary supply output ( 18~26VDC / 50 mA ) : use for 2-wire & 3-wire transmitter
● User-friendly, interactive operation interface.
● Panel installation, High light red LED display panel, 14.1mm height of character, 5 digits, -9.9.9.9~+9.9.9.9.9, 7-segment display
● Programmable, high safety & stability, fire-proof case, moisture-proof cover

display display readout : 5 digits ( -9.9.9.9 ... +9.9.9.9.9 ) decimal point : 0 ... 4 place, button display : highlight red LED ( brightness can be adjusted ) digit height : 14.1 mm accuracy : 0.1 % F.S. ± 1 digital sampling time : 4 cycle / sec response time adjustment range : 0.5 ... 60 sec parameter setting mode : button input voltage : 0 ... 10V, 2 ... 10V, 0 ... 1V, 0.2 ... 1V, 1 ... 5V current : 0 ... 20mA, 4 ... 20mA RTD : Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000 2/3/4w TC : B, E, J, K, N, R, S, T, U ( internal CJC function ) Linear Resistance 0 ... 10K Ohms Potentiometer 10 ... 100K Ohms analogue output current : 0-20mA, 4-20mA,20-0mA 20-4mA voltage : 0-1V, 0.2-1V,0-5V,1-5V, 0-10V, 2-10V,1-0V,1-0.2V,5-0V,5-1V,10-0V,10-2V load resistance : current：RL＜ 500 Ohm.；voltage≧10KΩ analogue output resolution : 16 bit signal error detection : yes relays alarm hysteresis : display value or 0~100% ON and OFF delay : 0~3600s output signal error detection : yes relay actuation direction : upper limit : HI, AL ； lower limit : LO, AL relay capacity : Max current : 6A Max voltage : 277VAC / 30VDC Max power : 1500VA / 180W communication communication methods & protocol : RS-485 Modbus RTU，master or slave RS-485 baud rate : 9600, 19200, 38400, 57600, 115200 bps environment operating environment : -10 to +60°C ; 0~95% ( non-cond. ) storage environment : -25 to +60°C electrical power supply / voltage : 85~253VAC, 50~60Hz auxiliary power : 18-26VDC/50mA insulation voltage endurance : 2KVac/1min parameter memory type : FLASH dissipated power : 5W isolation power supply / analogue input / analogue output / RS-485 protect protect degree : IP65 ( front panel ) electric protection : polarity protection & over-voltage certification CE material case : ABS fire-proof class ( UL94V-0 ) dimensions ( HxWxD ) : 48 x 96 x 94.45 mm cut out dimensions : 42.5 x 90.5 mm ( + 1 mm ) weight : about 230 g Products Temperature & Humidity Dewpoint Temperature Temperature sensor Air Velocity / Water Flow Gas Pressure Signal / Meter IoT / Wireless Industry 4.0 / A.I.

Industry / Agriculture / Pottery & Glass / Chemical Industry / Transportation
Technology / Energy / Eco-friendly / Oil & Gas / Water Circulation System / Marine
Factory Automation / Metal & Steel / Cement / Pulp & Paper / Pharmaceuticals / Food & Beverage

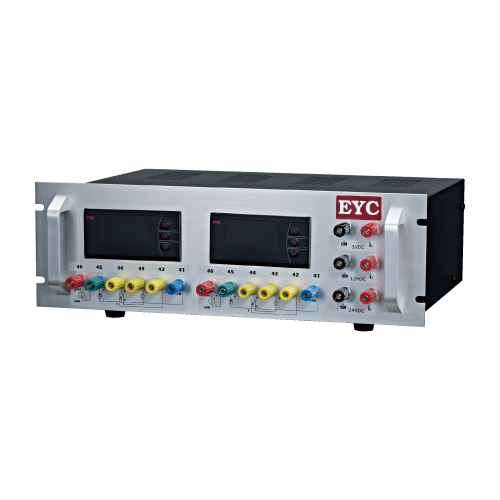

eYc DPS08 Integrated Multi-functional Instrument

● Modularized design
● Measuring range:0～10VDC/0～20mA/RTD/TC/10Ω~100 KΩ
● 4-digit LED indicator
● Suitable for applications while quick installment and dismantling of instrument is needed.

Working Environment
Temperature: -20~60℃(standard)/Humidity :0~90%RH(standard)
Linear Accuracy
All input ≦ ± 0.1 % of readout
Input
standard, PR 5714A
Signal connection
connector (standard)
Measuring Range
VDC: 0～1/ 0.2~1/ 0～10/ 2～10VDC
mA: 0～20mA、4～20mA
RTD: PT 10/20/50/100/200/500/1000、Ni 50/100/120/1000
TC: B/E/J/K/L/N/R/S/T/U/W3/W5/LR
potentiometer: 10Ω~100 KΩ (standard, PR 5714A)
DC power output
5 VDC (max 100 mA)/
12 VDC(max 100 mA)/24VDC (max 1A)
Power Supply
110~230 VAC(standard)
Certification standard
EMC: EN 61326-1
LVD: EN 61010-1、 UL: UL 508

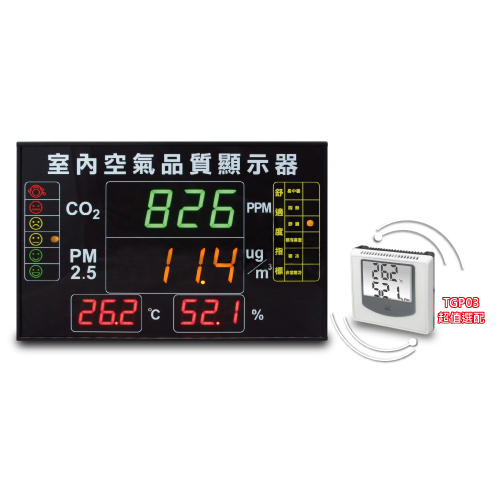

eYc DMB05 4-in-1 Multifunction Indoor Air Quality Large LED Display / Monitor / Indicator

【4-in-1】 Monitor PM2.5, CO2, temperature & humidity via RS-485 at the same time.
【High Brightness LED】Easily recognize measuring types and values.

Display Scale
Display Type High Brightness LED
Temperature 1.5" ( 3.8 cm ) red LED
Humidity 1.5" ( 3.8 cm ) red LED
PM2.5 2.3" ( 5.8 cm ) yellow LED
CO2 2.3" ( 5.8 cm ) green LED

Display Range with eYc TGP03
Temperature 0 ... 50 ℃
Humidity 0 … 100 %RH
PM2.5 0 … 500 μg / m3
CO2 0 … 2000 PPM

Accuracy
Temperature ± 0.4℃
Humidity ± 3 %RH ( at 20 ... 90 %RH )
PM2.5 ± 10 μg / m3 ± 5 % of Reading
CO2 ± 40 PPM ± 3 % of Reading

Input RS-485
Output
Signal Output RS-485
Protocol Protocol
Interface Modbus RTU
Relay x 2 set AC 230V / DC 24V, 5A
Address 1 … FF ( 16 Hex )
Baud Rate 19200, 9600, 4800, 2400, 115200,57600, 38400
Frame N.81, N.8.2, E.8.1, O.8.1

Installation Indoor and Wall type

●Monitor environment for Industrial Process / Plant / IDC / Clean room / Laboratory / Agriculture
●Storage / Hospital / Department store / Office building / Hotel / Restaurant / Library /
●Banks and so on.

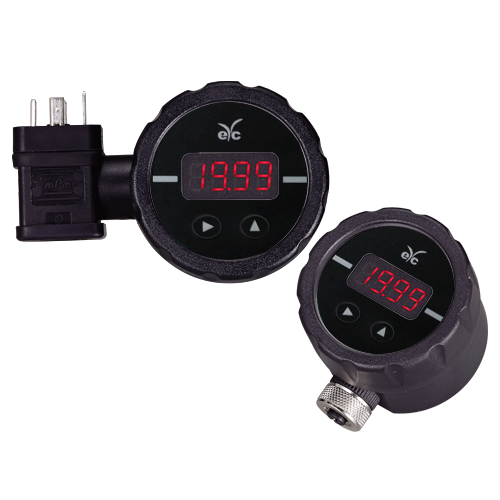

eYc SD05 Integrated Signal Indicator

● LED
● 2-wire signal loop
● Input:4~20mA
● Connector:DIN43650N/M12
● Max. 330° turnable

Input
4～20 mA DC
eg: pressure / differential pressure / temperature / flow / PH value / load cell, etc.
Display accuracy
0.2 % F.S.
Parameter Setting
programmable by pressing the button
Electrical connection
DIN 43650 plug / M12 connector
Voltage Drop
3.3 VDC
Power Supply
4~20mA, 2-wire loop power
Protection Degree
IP:65

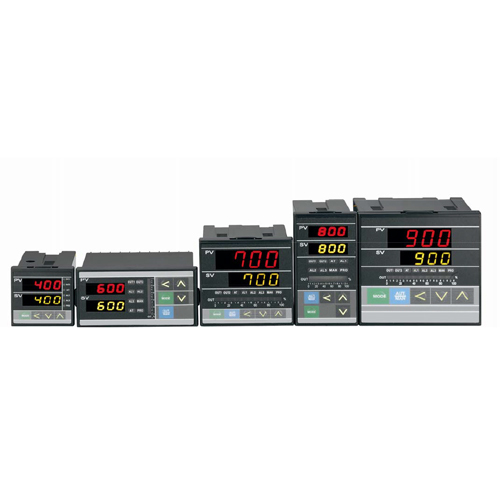

eYc SPD4579 PID Process Controller

● LED ● Size:4 kinds ● Dispaly:-1999∼9999 ● Input:Thermocouple/resistance bulb/Voltage/Current ● Output:Relay/SSR/analog signal/RS485

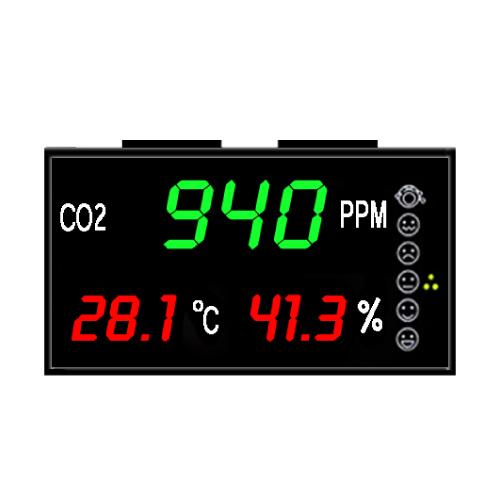

3-in-1 Multifunction CO2 Indoor Air Quality Large LED Display / Monitor / Indicator

【3-in-1】 Monitor CO2, temperature & humidity via RS-485 at the same time.
【High Brightness LED】Easily recognize measuring types and values.
【6-segment CO2 Emoticon】As the local situation and refer to CO2 indication standards to transfer the suitable emoticon
【Bargain Set】eYc CO2 Temperature & Humidity Transmitter / Indoor type ( type : eYc THG03 )

Input
Analog & RS-485
Output
RS-485(Modbus RTU mode)
Display
CO2 green 2.3”(5.8cm) LED
℃,% red 1.5”(3.8cm) LED
Dimension
375mm(L) X 200mm(W) X 60mm(D)
Use with
combination with EYC GTH03 CO2 Temperature & Humidity Transmitter

● Monitor environment for Industrial Process / Plant / IDC / Clean room / Laboratory / Agriculture
● Storage / Hospital / Department store / Office building / Hotel / Restaurant / Library / Banks and so on.

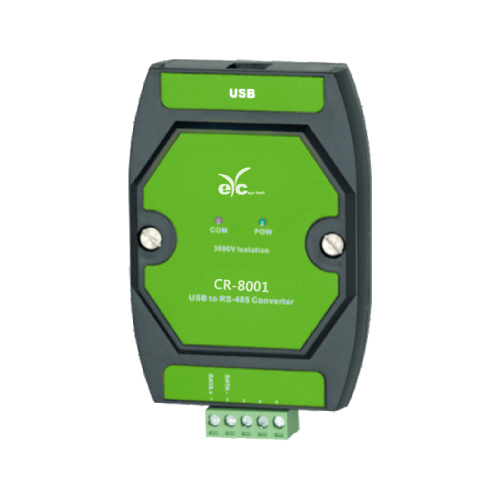

eYc CR-8001 USB to RS485 Converter

● Automatic RS-485 Direction Control
● No External Power Supply required、Fully Compliant with the USB 1.1/2.0(High Speed)
● 3000 VDC Isolation Protection on the RS-485 side、ESD Protection for the RS-485 & USB Data Line
● Driver Supports: Windows XP/Vista(32/64-bit)/7(32/64-bit)/Linux/Mac

Communication
USB:USB1.1 / USB2.0 / Type B connector

RS-485:Data+ / Data- / 5-Pin terminal block

Baud Rate:300~115200 bps

Transfer Distance:Max.1,200m at 9.6 kbps / Max.400m at 115.2 kbps

Max. Devices Supported:256

LED Indicator

Power Indicator:1

Communication Indicator:1
Isolation

Voltage:3000 VDC

Power

Input Range:USB +5VDC

Consumption:Approx. 0.4 W

Environment

Operation Temperature:-25~+75℃

Storage Temperature:-40~+85℃
Humidity:10~95%RH,(non-condensing)

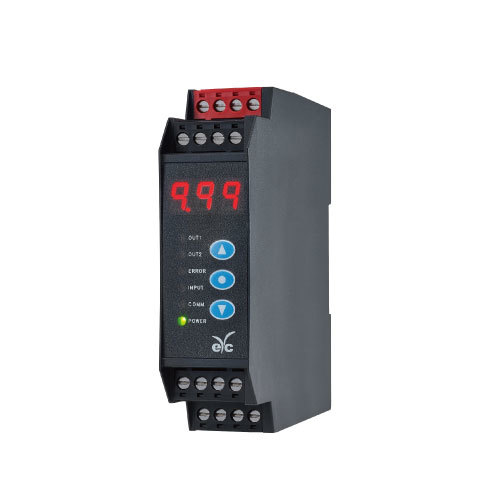

eYc DPT02 Signal Converter

Local display, easy keypad programming the signal output and scale, led for working status.
● Measuring input type : DC current / DC voltaget / Potentiometer / Linear Resistance / RTD / TC
● More output type ─ analogue output / RS-485 / relay / NPN or PNP, 2 channel output
● 20-point linear calibration function
● Signal isolation function ─ power supply / analogue input / analogue output / RS-485
● Power supply : 85~253 VAC；auxiliary supply output ( 16~25VDC / 23 mA ) : use for 2-wire & 3-wire transmitter
● User-friendly. High light red LED display panel, 7.6 mm ( height of character ), 3 digits, -199~999, 7-segment display
● DIN rail installation, High safety & stability, fire-proof case, moisture-proof cover
● Field ─ Chemical Industry / Energy / Water Circulation System / Oil & Gas / Marine / Factory Automation / Metal & Steel / Cement / Pulp & Paper / Pharmaceuticals / Food & Beverage

display
display readout : 3 digits ( - 199 ... + 999 )
decimal point : 0 ... 2 place, button
display : highlight red LED ( 7-segment )
digit height : 7.6 mm
accuracy : 0.2 % F.S. ± 1 digital
sampling time : 4 cycle / sec
response time adjustment range : 0.5 ... 60 sec
parameter setting mode : button
input
voltage : 0 ... 10V, 2 ... 10V, 0 ... 1V, 0.2 ... 1V, 1 ... 5V
current : 0 ... 20mA, 4 ... 20mA
RTD : Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300,
Pt400, Pt500, Pt1000 2/3/4w
TC : B, E, J, K, N, R, S, T, U ( internal CJC function )
Linear Resistance 0 ... 10K Ohms
Potentiometer 10 ... 100K Ohms
output
analogue
current : 0-20mA, 4-20mA,20-0mA 20-4mA
voltage : 0-1V, 0.2-1V,0-5V,1-5V, 0-10V, 2-10V,1-0V,1-0.2V,5-0V,5-1V,10-0V,10-2V
RELAY, NPN, PNP, RS-485
load resistance : current：RL＜ 500 Ohm.；voltage≧10KΩ
analogue output resolution : 16 bit
signal error detection : yes
relays
alarm hysteresis : display value or 0~100%
ON and OFF delay : 0~3600s
output signal error detection : yes
relay actuation direction : upper limit : HI, AL ； lower limit : LO, AL
relay capacity : Max current : 6A
Max voltage : 277VAC / 30VDC
Max power : 1500VA / 180W
communication
communication methods & protocol : RS-485 Modbus RTU，master or slave
RS-485 baud rate : 9600, 19200, 38400, 57600, 115200 bps
Frequency
NPN / PNP
environment
operating environment : -10 to +60°C ; 0~95% ( non-cond. )
storage environment : -25 to +70°C
electrical
power supply : 85~253VAC
auxiliary power : 16-25VDC / 23mA
insulation voltage endurance : 2KVac/1min
parameter memory type : FLASH
dissipated power : 5W
isolation
power supply / analogue input / analogue output / RS-485
protect
protect degree : IP20
electric protection : polarity protection & over-voltage
certification
CE
material
case : ABS fire-proof class ( UL94V-0 )
dimensions ( HxWxD ) : 99.5 x 25.5 x 104.2 mm
weight : about 158 g
