External Flush Diaphragm Pressure

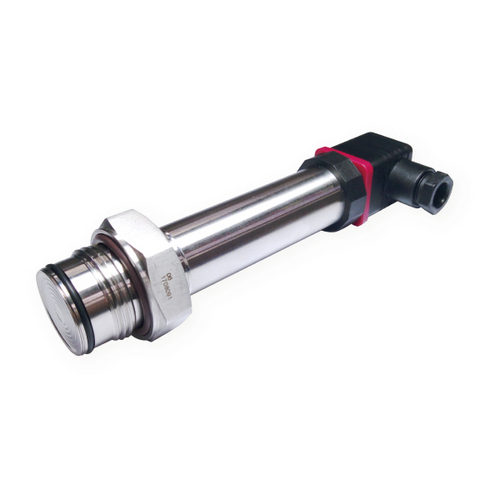

eYc P045 External Flush Diaphragm Pressure Transmitter

Hygienic pressure transmitter, designed for food and pharmaceutical industry, is suitable for CIP/SIP cleaning and sterilization. Smart compact design, the welded process diaphragm medium parts is made of high quality stainless steel 316L, roughness ≦ 0.4um, filling fluid with hygiene standard in line with FDA certification, variety of international standard process connections are available.

Pressure types
Relative Pressure
Measuring range
0.1 ... 400 bar
Output
4 … 20mA
Signal Connection
2-wire
Response Time ( 10 … 90 % )
≦ 2S
Power supply effects
Zero and span change should not be more
than ± 0.005% URL/V when power supply
changes in 10.5/16.5-55VDC
Loading effects
Zero and span change should not be more
than ± 0.05% URL/kΩ
Accuracy( at 20 °C ± 5 °C )
± 0.5 % of F.S.
Measuring medium
Viscous, paste-like, adhesive, crystallising,
particulatescontaining and contaminated media
Protection class
IP67
Power Supply
10 ... 30 VDC
Transmission distance
< 1000 m
Housing material
SUS 316
Installation
Duct

●SUS316 housing, SUS316L sensor material
●Compact and rugged design and easy to install
●With reasonable price, high accuracy and
●nicer long-term stability

●Measuring pressure for liquid
●For research and development, laboratory, and
●processing engineering
●Food Pharmaceuticals / Factory construction /
●Process equipment / Machine devices /
●Water plant / Air devices, etc
